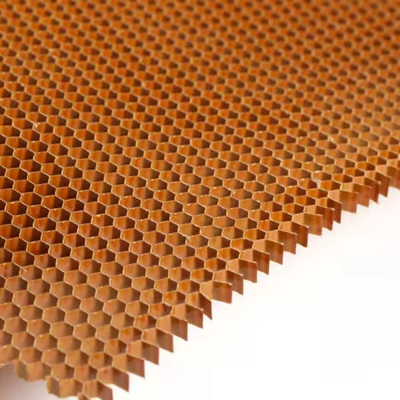

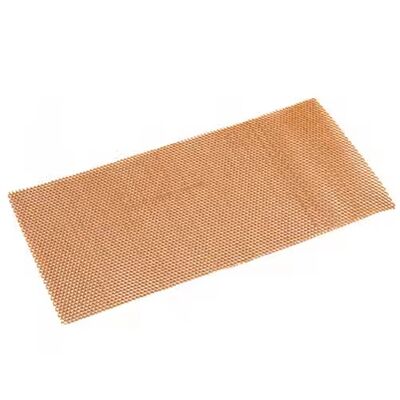

3mm Thickness Aramid Honeycomb Core Corrosion Resistance Super Light
1. Descriptions:
Aramid honeycomb core is a hexagonal structure core material widely used in aerospace and industrial fields. Phenolic resin has been used as a reinforcing material in the production of aramid honeycomb cores. With the continuous improvement of mechanical properties of aramid paper honeycomb cores in certain fields, the performance indicators of aramid paper honeycomb core products are gradually improving to better meet the requirements of aerospace and industrial fields. The commonly used thicknesses are 3mm, 5mm,10mm.
2. Specifications:
| Specifications |
Cell size
(mm/inch)
|
Density
(kg/m³)
|
Compression
strength
(MPa)
|
L-Shear
strength
(MPa)
|
W-Shear
strength
(MPa)
|
| Commercial Grade Aramid Honeycomb Core |
| BHC1313-3.2-48 |
3.2 |
1/8 |
48 |
1.9 |
1.16 |
0.62 |
| BHC1313-3.2-64 |
3.2 |
64 |
3.1 |
1.48 |
0.82 |
| BHC1313-3.2-80 |
3.2 |
80 |
4.7 |
1.95 |
1.05 |
| BHC1313-3.2-96 |
3.2 |
96 |
6.6 |
2.45 |
1.42 |
| BHC1313-4.8-32 |
4.8 |
3/16 |
32 |
0.9 |
0.58 |
0.36 |
| BHC1313-4.8-48 |
4.8 |
48 |
2.6 |
0.98 |
0.56 |
| BHC1313-4.8-64 |
4.8 |
64 |
3.4 |
1.7 |
0.92 |
| BHC1313-4.8-80 |
4.8 |
80 |
6 |
1.95 |
1.1 |
| BHC1313-4.8-96 |
4.8 |
96 |
7.3 |
2.26 |
1.32 |
| BHC1313-6.4-24 |
6.4 |
1/4 |
24 |
0.54 |
0.34 |
0.18 |
| BHC1313-6.4-32 |
6.4 |
32 |
0.8 |
0.54 |
0.3 |
| BHC1313-6.4-48 |
6.4 |
48 |
2.05 |
1 |
0.56 |
| BHC1313-6.4-64 |
6.4 |
64 |
3.4 |
1.54 |
0.79 |
| BHC1313-9.5-24 |
9.5 |
3/8 |
24 |
0.52 |
0.32 |
0.16 |
| BHC1313-9.5-32 |
9.5 |
32 |
0.68 |
0.56 |
0.29 |
| BHC1313-9.5-48 |
9.5 |
48 |
9.6 |
1.15 |
0.66 |
| Aerospace Grade Aramid Honeycomb Core |
| BHC1313A-3.2-48 |
3.2 |
1/8 |
48 |
2 |
1.26 |
0.72 |
| BHC1313A-3.2-64 |
3.2 |
64 |
3.2 |
1.58 |
0.92 |
| BHC1313A-3.2-80 |
3.2 |
80 |
4.8 |
2.05 |
1.15 |
| BHC1313A-3.2-96 |
3.2 |
96 |
6.7 |
2.55 |
1.52 |
| BHC1313A-3.2-128 |
3.2 |
128 |
11.4 |
3.05 |
1.88 |
| BHC1313A-3.2-144 |
3.2 |
144 |
13.3 |
3.15 |
2 |
| BHC1313A-4.8-32 |
4.8 |
3/16 |
32 |
1 |
0.68 |
0.46 |
| BHC1313A-4.8-48 |
4.8 |
48 |
2.7 |
1.08 |
0.66 |
| BHC1313A-6.4-48 |
6.4 |
1/4 |
48 |
2.15 |
1.1 |
0.66 |
| BHC1313A-9.5-48 |
9.5 |
3/8 |
48 |
9.7 |
1.25 |
0.76 |
3. Aramid honeycomb core has several advantages:
• Super light and high strength anti-fatigue
• Outstanding corrosion resistance and flame resistance
• Excellent environment adaptability and electric insulating
• Good dielectric properties and high stability
4. Applications:
• Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on
5. Aramid honeycomb core of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, it is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Exhibition show
8. FAQ
Q1. What is aramid honeycomb core usd for?
A: Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.
Q2. What are the advantages of aramid honeycomb core?
A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.
Q3. What is the packaging method of aramid honeycomb core?
A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
